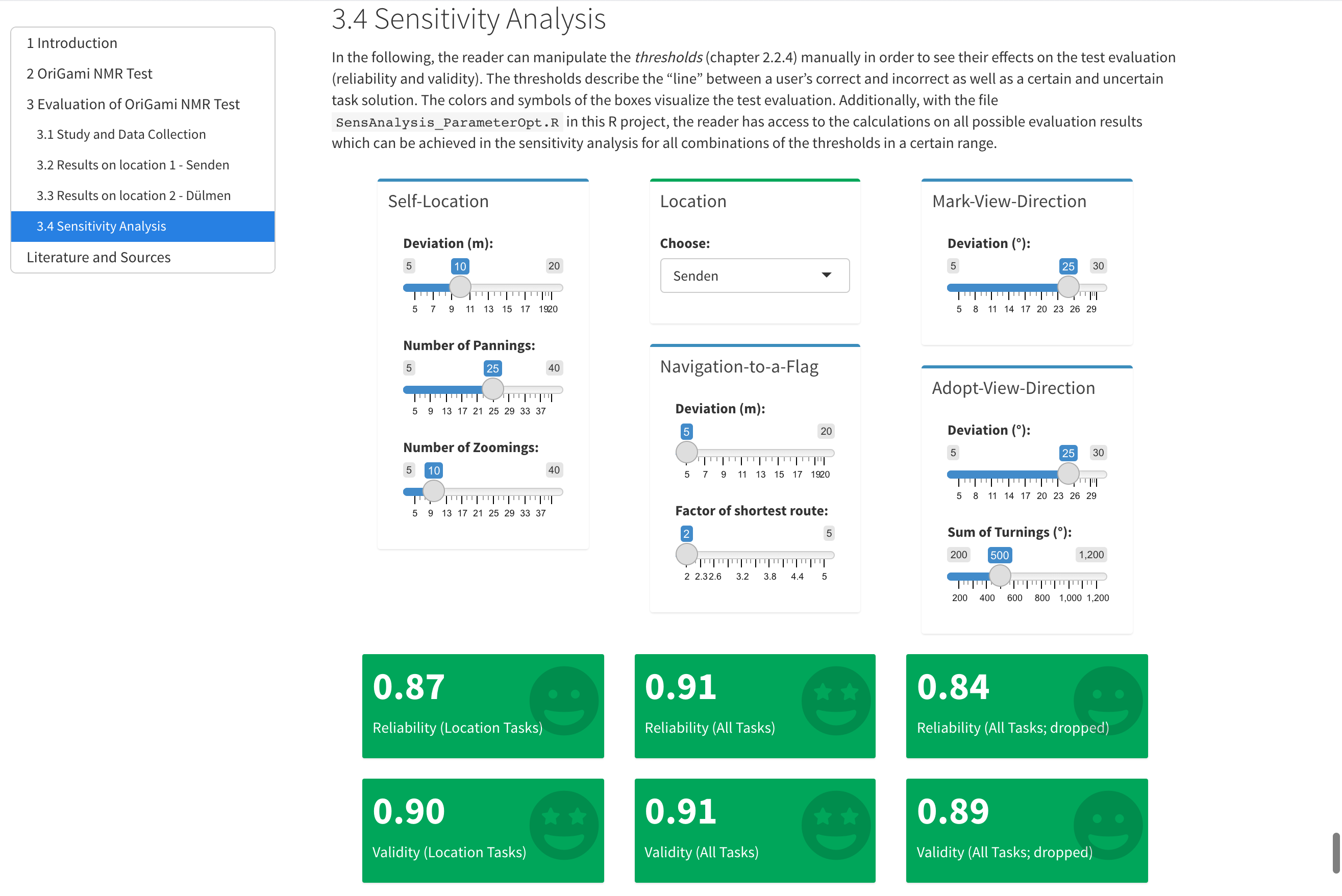

![](https://origami.ifgi.de/pictures/logo/logo.png) # OriGami NMR Test On the basis of our location-based game **OriGami** we created a test instrument for measuring navigational map reading (NMR) competencies: **OriGami NMR Test**. The main aim of the following R project is to give the reader details on our OriGami NMR Score calculation and the test evaluation. Moreover, we want to provide information and scripts for conducting OriGami NMR Test for another location or age group. [Click here](https://github.com/JaninaBistron/OriGamiNMRTest) to visit the corresponding GitHub Repository. [Click here](https://origami.ifgi.de) to visit the OriGami Website (German). [Click here](https://app.origami.ifgi.de) to visit OriGami App in a browser version. ## Project structure **Run.Rmd**: R Markdown file that runs the project. It presents the user the results of our test evaluation. **Custom.Rmd**: R Markdown file that allows the user to evaluate his or her own OriGami NMR Test data for a self-chosen location (see instructions below). **SensAnalysis_ParameterOptn.R**: R Script allowing the user to determine the minimun and maximum reliability and validity coefficients for a given range of thresholds (for details run `Run.Rmd`). **data**: This folder contains the raw data for both data sets/locations: Senden and Dülmen. Moreover, the user can add his custom data (see instructions below). **results**: This folder contains resulting data for both locations (for details run `Run.Rmd`) and for the users custom data (see instructions below). **calculations**: This folder contains the R files for all calculations of this project. `Run.Rmd` and `Custom.Rmd` refer to these files and each of these files refer to the files in the related sub-folder. The whole structure of the calculation folder is based on the chapters in the resulting R Markdown file. The files are ordered in a chronological way. **tables_and_figures**: This folder includes all plots and tables visualized in the R Markdown files `Run.Rmd` and `Custom.Rmd`. ![](https://raw.githubusercontent.com/JaninaBistron/OriGamiNMRTest/main/README/pic1.png) _Fig. A: Screenshot of the R Markdown File generated by running the Run.Rmd-file: You can choose different participants to visualize their GPS track and the location where each child performed the test tasks._ ## Run the app 1. Install [R Studio](https://www.rstudio.com) and [R](https://www.r-project.org). 2. Download this repository to your computer (e.g. via the download-button above these files). 3. Open R Studio and install missing libraries by copying and pasting the following code in the R Studio Console: ```r install.packages("shiny") + install.packages("shinydashboard") + install.packages("kableExtra") + install.packages("tidyverse") + install.packages("lubridate") + install.packages("data.table") + install.packages("rgdal") + install.packages("sf") + install.packages("sp") + install.packages("ggplot2") + install.packages("psych") + install.packages("leaflet") + install.packages("leaflet.extras") + install.packages("jsonlite") + install.packages("moments") + install.packages("DescTools") ``` 4. Open `Run.Rmd` and run it by clicking on the "Run document" button. A shiny markdown file will be generated. ![](https://raw.githubusercontent.com/JaninaBistron/OriGamiNMRTest/main/README/pic2.png) _Fig. B: Screenshot of the R Markdown File: In this sensitivity analysis you can adapt the thresholds used within the performance evaluations to show the reliability and validity for different parameter settings._ ## Conduct OriGami NMR Test for your own location If you are interested in developing OriGami NMR Test for your location and/or another target group of interest (e.g. another age group), you have to proceed as follows: 1. Install OriGami on your mobile devices (see [OriGami-Website](https://origami.ifgi.de) for further instructions). Information on the devices can be found in `Run.Rmd`, chapter 2. 2. Create an OriGami account and contact us for getting the "scientist" user role. This role gives you access to your data. 3. Create a game in OriGami with the structure described in `Run.Rmd`, chapter 2. `Run.Rmd` is a test manual for using OriGami NMR Test to measure NMR competencies. 4. Conduct the test. Use numbers for your participants instead of real names! _Note: A mobile Internet connection is needed for conducting the test (SIM card). However, if the Internet connection breaks (due to the bad Internet signal in park areas), it is nevertheless possible to continue playing the game started. The data won't be uploaded to the server then, but this can be fixed by uploading it later (via pressing the cloud-button in the evaluation mode of OriGami)._ 5. Save one json-logfile for all your data on your computer. 6. Edit your json-file via R as follows: - Create a data.frame with: `logfile <- fromJSON(...)` - Reduce your data to the following columns: `waypoints` (data.frame), `events` (data.frame), `players` (numeric), `name` (character), `start` (POSIXct), `end` (POSIXct) and delete unneeded columns: ```r logfile <- select (logfile, -answers, -device, -`__v`, -updatedAt, -createdAt, -game, -playersCount, -`_id`) ``` - Format the timestamps (see columns: `end`, `start`, `waypoints.timestamp` and `events.timestamp`) as follows: ```r timestamp <- as.POSIXct(timestamp, "%Y-%m-%dT%H:%M:%S", tz = "UTC") logfile$start <- lubridate::with_tz(logfile$start, "MET") ``` - Save your resulting data as `logfile.Rda` and replace the logfile in the `data/custom` folder. 7. Open `Custom.Rmd` in R Studio and run the file. An R-Markdown file will be generated. You will get information on your test items as well as on the test reliability. 8. In order to examine the validity of your test, expert judgments are needed. Add a csv-file with your expert data in the data/custom folder (first column: `participant`; second column: `expertscoring`). Use the same participant numbers as in your logfile. Add the validity code chunk from `Run.Rmd` to include the validation calculation. ## Contact Spatial Intelligence Lab (SIL) Institute for Geoinformatics University of Münster Heisenbergstraße 2 48149 Münster **Mail:** origami.ifgi(at)uni-muenster.de **Team:** https://origami.ifgi.de/kontakt.html#team ## License OriGami NMR Test Script (all Rmd- and R-files of this project), is licensed under GPL v. 3.0 License, see file LICENSE part 1. The data (see folder `data` and `results`) are under CC BY-NC-ND 4.0 Licence, see file LICENSE part 2. Copyright (C) 2021 - OriGami.
